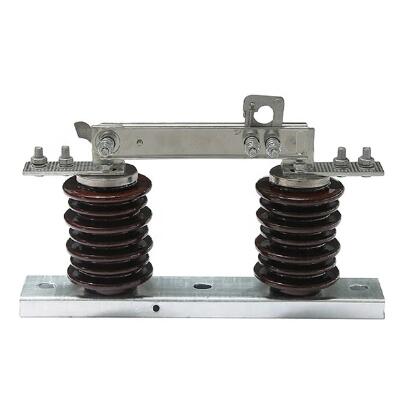

Unveiling Precision: The Operating Mechanism of Single Phase Disconnecting Porcelain Isolate Switches in Single-Phase Systems

Introduction:

In the intricate world of electrical engineering, the efficiency and reliability of components hinge on their operating mechanisms. A critical player in this realm is the Single Phase Disconnecting Porcelain Isolate Switch, a device designed to achieve precise disconnection in single-phase systems. In this blog, we will delve into the operating mechanism of this switch, unraveling the intricacies that enable it to seamlessly interrupt power in a controlled and effective manner.

1. Understanding the Core Function:

  At its essence, the Single Phase Disconnecting Porcelain Isolate Switch is designed to provide a means of disconnecting power in a single-phase electrical circuit. Its operating mechanism is finely tuned to enable this disconnection without compromising safety or system integrity.

2. Rotational Motion:

  One common operating mechanism employed in these switches involves rotational motion. A handle or lever, often located on the exterior of the switch, allows for manual actuation. When the handle is turned, it sets in motion a series of internal components that facilitate the controlled disconnection of the electrical circuit.

3. Mechanical Linkages:

  Within the switch, mechanical linkages connect the external handle to the internal components responsible for opening and closing the contacts. These linkages ensure that the motion applied externally is translated precisely to the internal components, allowing for a reliable and repeatable operation.

4. Contact Separation:

  The heart of the operating mechanism lies in the separation of contacts. As the handle is turned, the mechanical components work in concert to create a gap between the contacts. This deliberate separation interrupts the flow of electrical current, achieving the desired disconnection in the single-phase system.

5. Positive Break Action:

  The operating mechanism is designed to achieve a positive break action, ensuring that the contacts separate quickly and decisively. This feature minimizes the risk of arcing and contributes to the long-term reliability of the switch by reducing wear and tear on the contacts.

6. Arc Quenching:

  In conjunction with the contact separation, some switches incorporate arc quenching mechanisms. These features redirect and extinguish any arcing that may occur during the disconnection process, further enhancing the safety and longevity of the switch.

7. Isolation of Circuits:

  The precision of the operating mechanism allows for the isolation of specific circuits within the single-phase system. This targeted disconnection is crucial for maintenance, repairs, or troubleshooting activities, providing a controlled environment for working on electrical components.

8. Manual Control and Locking:

  The manual nature of the operating mechanism gives users direct control over the disconnection process. Some switches are also equipped with locking mechanisms to prevent unauthorized or accidental operations, adding an extra layer of safety.

9. Visual Indicators:

  To aid operators, many Single Phase Disconnecting Porcelain Isolate Switches feature visual indicators. These indicators provide a clear signal of the switch's status, allowing users to confirm whether the contacts are open or closed.

Conclusion:

In conclusion, the operating mechanism of Single Phase Disconnecting Porcelain Isolate Switches is a testament to precision engineering. Through carefully designed rotational motion, mechanical linkages, contact separation, and additional safety features, these switches achieve reliable and controlled disconnection in single-phase systems. As electrical systems continue to evolve, the sophistication of these operating mechanisms remains pivotal, ensuring the safety, efficiency, and longevity of electrical installations.
