What is a Part-Turn Clutch Type Pneumatic Actuator and How Does It Work?

2024-12-21

In industrial applications where precision and control are crucial, pneumatic actuators play an essential role. Among the various types, the part-turn clutch type pneumatic actuator stands out for its efficiency and reliability in automating valve operations. Whether used in oil and gas, water treatment, or chemical processing, this actuator offers significant advantages in controlling flow systems.


What is a Part-Turn Clutch Type Pneumatic Actuator?

A part-turn clutch type pneumatic actuator is a device designed to automate the movement of quarter-turn valves, such as ball valves, butterfly valves, and plug valves. Unlike linear actuators, which produce linear motion, this actuator delivers rotational motion, typically within a 90-degree range.

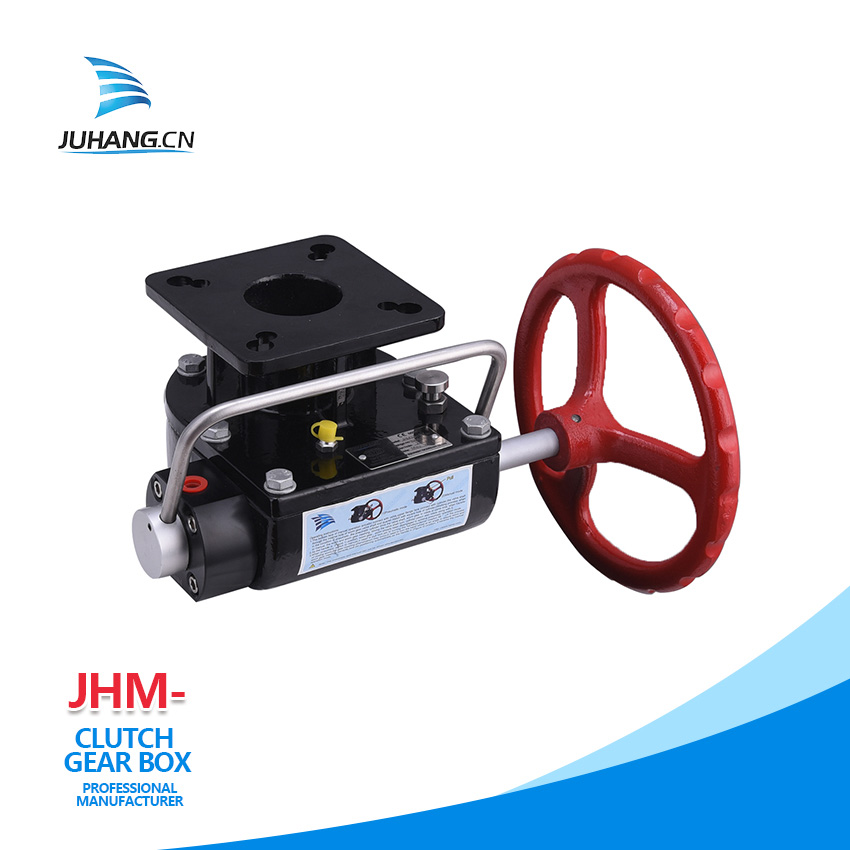

The “clutch type” mechanism enables manual override without disrupting the automated system. This feature is especially useful during maintenance, emergencies, or power failures, ensuring flexibility and operational continuity.


Key Components and How It Works

1. Pneumatic Cylinder

  The core of the actuator is the pneumatic cylinder, which converts compressed air into mechanical motion. When pressurized air is introduced, it drives the piston to produce rotational torque.


2. Clutch Mechanism

  The clutch allows operators to switch between automatic and manual operation. When engaged, the clutch transfers motion from the actuator to the valve. Disengaging the clutch enables manual control without affecting the pneumatic system.


3. Part-Turn Design

  The part-turn design ensures that the actuator is optimized for applications requiring a specific range of motion, such as fully opening or closing a valve.


4. Control Valves and Accessories

  Integrated control valves regulate the flow of compressed air, enabling precise control of the actuator’s movement. Accessories like position indicators and limit switches enhance functionality by providing real-time feedback on valve position.


Advantages of a Part-Turn Clutch Type Pneumatic Actuator

1. Energy Efficiency

  Pneumatic actuators are powered by compressed air, which is readily available in most industrial settings. This makes them a cost-effective and energy-efficient choice.


2. Reliability in Harsh Environments

  These actuators are robust and capable of operating in extreme temperatures, corrosive conditions, and dusty or wet environments, making them ideal for demanding industries.


3. Manual Override Capability

  The clutch mechanism allows for manual operation when required, offering flexibility during maintenance or in situations where the pneumatic system is unavailable.


4. Precision Control

  With adjustable stops and control valves, part-turn actuators provide precise positioning, ensuring optimal performance for critical applications.


5. Compact and Lightweight

  The compact design of these actuators makes them easy to install in spaces where larger systems may not fit.


Applications

Part-turn clutch type pneumatic actuators are widely used in industries requiring precise flow control and automation. Some common applications include:

- Oil and Gas: Controlling the flow of crude oil, natural gas, and refined products.

- Water Treatment: Regulating valves in filtration, desalination, and wastewater systems.

- Chemical Processing: Managing the flow of chemicals in manufacturing plants.

- Power Generation: Controlling steam and cooling systems in power plants.

- Food and Beverage: Ensuring hygienic and precise flow in production lines.


The part-turn clutch type pneumatic actuator is a versatile and reliable tool for automating quarter-turn valves. Its combination of pneumatic power, manual override capability, and precision control makes it an essential component in modern industrial systems. By understanding its features and applications, industries can optimize their operations, improve safety, and enhance efficiency.
